          仿威圖機柜保溫柜技術生產要求

          發布時間:2023-04-26 來源:http://www.qfpsy.com/ 瀏覽量:

          1、仿威圖配電柜保溫柜其柜型結構,仍是在仿威圖野外機柜的基礎上演變而來,全體野外防水作用很好,密封性;
          1. The insulation cabinet of the imitation Rittal distribution cabinet is first of all based on its cabinet structure, which is still evolved from the imitation Rittal outdoor cabinet. The overall outdoor waterproof effect is very good, and the sealing is excellent;
          2、保溫柜在野外運用的時候,一般多是在北方嚴寒的當?shù)兀鞙囟饶艿竭_(dá)零下20多度,甚更低!那么為了確保柜內元器件正常運轉作業,必須要保持柜內一定的溫度,方法有幾種。一種是貼復鋁箔保溫棉,厚度一般在10-20mm以上,甚更厚。這種保溫棉的保溫作用很好,也可以再配一個加熱器和一個溫控器,泰予出產的仿威圖加熱器和溫控器可以搭配運用,溫控器設定好溫度今后,當環境溫度到達設定溫度值時,加熱器就開始作業,這樣柜內部溫度也會慢慢升高。
          2. When insulation cabinets are used in the wild, they are usually located in the cold northern regions, with temperatures reaching around -20 degrees Celsius or even lower in winter! So in order to ensure the normal operation of the components in the cabinet, it is necessary to maintain a certain temperature inside the cabinet. There are several methods. One type is to apply aluminum foil insulation cotton, with a thickness of generally 10-20mm or even thicker. This type of insulation cotton has a good insulation effect, and can also be paired with a heater and a temperature controller. The imitation Rita heater and temperature controller produced by Taiyu can be used together. After the temperature controller is set, the heater will start working when the ambient temperature reaches the set temperature value, so that the temperature inside the cabinet will gradually increase.

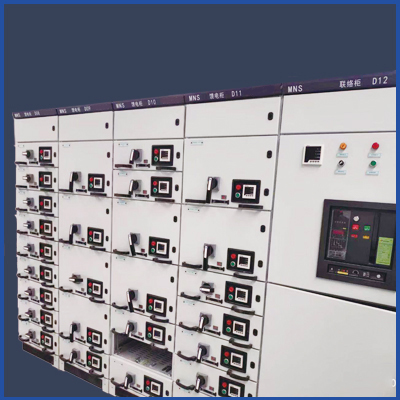

          仿威圖機柜
          3、有些保溫柜在野外運用時,并不是裝元器件,而是再里面裝水管和壓力表,閥門等。這種也是操控水站,或許其它什么水處理體系設備的,冬天溫度低,不能讓水管結冰凍住,這時候也需求給柜體進行保溫或許加熱。
          3. When some insulation cabinets are used in the wild, they are not equipped with components, but with water pipes, pressure gauges, valves, etc. inside. This is also used to operate water stations or other water treatment system equipment. In winter, the temperature is low and the water pipes cannot freeze. At this time, it is also necessary to provide insulation or heating to the cabinet.
          4、在制造仿威圖機柜(保溫柜)的時候,需求注意,柜內要盡可能的平整,除了非必要的接地螺柱以外,其它螺絲螺柱要盡可能的防止,因?yàn)閮?nèi)部越是平坦,后期貼保溫棉就越方便,保溫作用也越好。甚不需求運用野外機柜空調或許冷熱交換器。
          4. When manufacturing imitation Rittal cabinets (insulation cabinets), it is important to note that the interior of the cabinet should be as flat as possible. Except for unnecessary grounding studs, other screws and studs should be prevented as much as possible. The flatter the interior, the more convenient it is to apply insulation cotton later on, and the better the insulation effect. There is even no need to use outdoor cabinet air conditioners or heat exchangers.
          5、仿威圖野外接線箱也可以做保溫結構,原理都是相同的,只不過反面的掛墻附件,要直接焊接上去,不能運用通用規范的AE箱壁掛件
          5. Imitating the Weitu outdoor junction box can also be used as an insulation structure, with the same principle. However, the wall attachment on the back side needs to be directly welded on, and the AE box wall attachment in general specifications cannot be used
          6、其他的柜型,例如仿威圖琴式操作臺、PC電腦柜、工業電腦操控柜、鋁合金懸臂體系、防水端子盒、PS九折型材柜、威圖電柜等要想做保溫結構,也可以考慮,但是在制造工藝上會比較復雜,這個要看詳細的現場環境要求。
          6. Other cabinet types, such as imitation Vituqin style operating consoles, PC computer cabinets, industrial computer control cabinets, aluminum alloy cantilever systems, waterproof terminal boxes, PS 90 fold profile cabinets, VituElectric cabinets, etc., can also be considered for insulation structures. However, the manufacturing process may be more complex, which depends on detailed on-site environmental requirements.
