          仿威圖柜的這些制作特點

          發布時間:2023-04-21 來源:http://www.qfpsy.com/ 瀏覽量:

          鈑金機箱機柜采用快開側門,方便安裝和維修
          The sheet metal chassis and cabinet adopt quick opening side doors for easy installation and maintenance
          仿威圖機柜的特點:
          Features of the imitation Rittal cabinet:
          具有良好的技術性能
          Having good technical performance
          具有良好的使用性和防護設施,便于操作安裝和維修,并能確保操作者。
          It has good usability and safety protection facilities, which are easy to operate, install, and maintain, and can ensure the safety of operators.
          便于生產組裝調試和包裝運輸。
          Convenient for production, assembly, debugging, packaging, and transportation.
          合乎標準化規格化系列化的要求。
          Meet the requirements of standardization, standardization, and serialization.
          造型美觀適用色彩協調。
          Beautiful appearance, suitable for color coordination.
          一確定仿威圖機箱的類型和外形尺寸
          Determine the type and overall dimensions of the imitation Rittal chassis
          仿威圖機箱類型是在總體布局過程中,根據不同的產品應用需求,制定各種不同方案,經過討論分析和比較而確定是掛墻式桌面式還是上架式的。
          The type of imitation Weitu chassis is determined through discussion, analysis, and comparison during the overall layout process, based on different product application requirements, to develop various solutions and determine whether it is a wall mounted desktop or a shelving type.
          機箱尺寸是按機箱內元器件的大小確定初步尺寸,然后根據這個尺寸選用標準尺寸;也可先選定標準的外形尺寸,再進行箱內的元器件布局分配。
          The size of the chassis is determined based on the size of the components inside the chassis, and then standard dimensions are selected based on this size; You can also select standard external dimensions first, and then allocate the layout of components inside the box.
          二面板設計機箱內元器件的排列布局
          Arrangement and layout of components in the two panel design chassis
          面板的尺寸是在機箱類型尺寸確定后定下的,而面板上各種操縱和顯示裝置的選擇和布局,應該根據電原理圖的要求人機工程造型通風等因素綜合考慮。
          The size of the panel is determined after the chassis type size is determined, and the selection and layout of various control and display devices on the panel should be comprehensively considered based on the requirements of the electrical schematic diagram, ergonomic design, ventilation, and other factors.

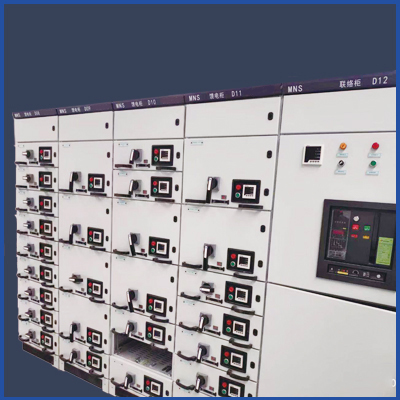

          仿威圖機柜
          機箱內部元器件的排列是根據電原理圖,主要元器件的外形尺寸及相互關系,并考慮通風減振屏蔽及走線的方便美觀程度等來確定的。
          The arrangement of components inside the chassis is determined based on the electrical schematic diagram, the external dimensions and interrelationships of the main components, and considering the convenience and aesthetics of ventilation, vibration reduction, shielding, and wiring.
          三怎樣選擇好的仿威圖機箱機柜
          How to Choose a Good Mimic Rittal Cabinet
          看鋼板,鋼板一定要厚,你用手指敲一下,就能感覺到哪些厚哪些薄了。
          Look at the steel plate, it must be thick. You can feel which ones are thick and which ones are thin by tapping with your fingers.
          看噴漆,一個合格的仿威圖機柜,所有的鋼材都需要噴漆,而且噴漆一定要平均,這樣才能良好地防銹防塵等。
          Look at the paint spraying. A qualified imitation Rittal cabinet requires paint spraying on all steel, and the paint spraying must be evenly distributed in order to effectively prevent rust and dust.
          看架構布局,一般來說,擋板要多,而且具有散熱孔,一些用來固定線纜的鐵皮要包邊,預防損壞線纜。側壁風扇應安裝在仿威圖機柜后壁,由于設備后部產生大多數的熱量。
          Based on the architectural layout, generally speaking, there should be more baffles and heat dissipation holes. Some iron sheets used to fix cables should be wrapped to prevent damage to the cables. The side wall fan should be installed on the back wall of the simulated Rittal cabinet, as the rear of the equipment generates most of the heat.
          看配件,因為安裝中包括網絡電纜電信電纜和電源電纜,需要購買鉤環帶或帶齒的帶子來有效地把電纜有序的固定在仿威圖機柜里面。假如仿威圖機柜帶有電纜治理模塊使電纜可以直接固定在垂直安裝軌內,則再好不外。
          Look at the accessories, as the installation includes network cables, telecommunications cables, and power cables. It is necessary to purchase hook and loop straps or toothed straps to effectively secure the cables in an orderly manner inside the simulated Rittal cabinet. If the imitation Rittal cabinet comes with a cable governance module that allows the cables to be directly fixed in the vertical installation rail, then it is no exception.
          看玻璃,玻璃一定要厚一點的,還要留意玻璃的周邊是否有裂縫,假如有裂縫,就意味著有隱患了,還有要留意是否棘手。
          Looking at the glass, it must be thicker and pay attention to whether there are cracks around the glass. If there are cracks, it means there are hidden dangers, and it is also important to pay attention to whether it is difficult.
          看功能:率先考慮的應是性。
          Looking at functionality: Safety should be the first consideration.
          看散熱,估計一下你的設備發熱量有多大,一般來說,柜頂都有二到四個風扇,風扇都是多多益善的啦。還有一些用來固定機架的螺絲螺母等,也要足量。不因日后擴展而帶來配件不足的麻煩。
          Look at the heat dissipation and estimate how much heat your device generates. Generally speaking, there are two to four fans on the top of the cabinet, and the more fans, the better. There are also sufficient screws and nuts used to secure the rack. Not causing trouble with insufficient accessories due to future expansion.
